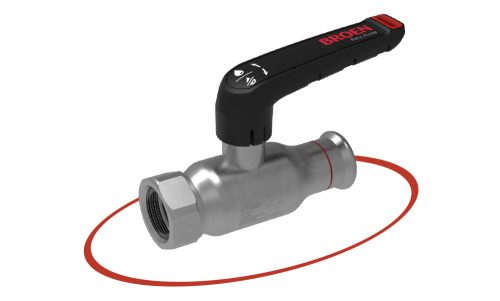

KEMBLA BROEN
Full Flow Valves
Galvanized Steel

Back to Standards

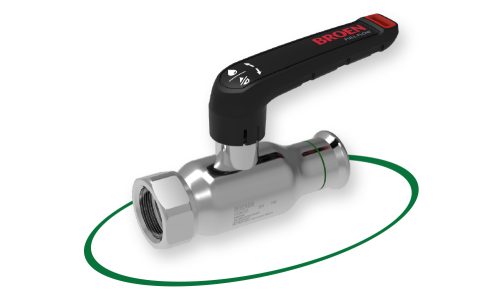

Kembla Broen Full Flow Valves – Stainless Steel

Broen Full Flow Stainless Steel valves are particularly well suited for drinking water installations, but they can also be used for other purposes, such as:

  • Central heating systems
  • District heating systems
  • Cooling systems
  • Industrial
  • Certain types of compressed air systems
  • Systems for treated water.

KEMBLA BROEN FULL FLOW VALVE TECHNOLOGY

Designed and manufactured with risk minimisation and ease of use in mind, the Kembla Broen Full Flow valve Press-fit Connection System utilises unique features and technologies that deliver the reliability, efficiency and quality required by modern buildings.

Kembla Broen Full Flow is the most flexible valve available on the market. It provides many more options for complete solutions with uniform connection technology and material properties and delivers trouble-free operation in countless systems because its materials standards and technologies are uniform.

Kembla Broen Full Flow is the amalgamation of installation smarts, features and technology to provide a total package that reduces your risk and works with you on site to achieve the highest quality installation and protect your reputation.

The Kembla Broen Full Flow valve technology package incorporates just some of the following unique features:

  • Compact Full Flow Design
  • Connection Flexibility
  • M Profile Press Connection Ends
  • Unique Valve Design
  • Easy Valve Identification
  • Leak Before Press Tested
  • Corrosion Resistant 316 Stainless Steel

Compact Full Flow Design

The compact valve housing provides the best insulation option on the market, meeting modern HVAC system requirements.

Uniform Installation

Using the same materials for pipes and valves, which ensures minimum risk of corrosion.

Leak Before Press

All press valves are leak tested using “Leak Before Press”, which minimises the risk of leaks.

Unique Valve Design

All Full Flow valves are individually marked with a unique identification number and data matrix with information about process, quality and distribution.

Connection Flexibility

The Full Flow system can be quickly and easily connected to other connection technologies (Press, threaded or swivel nut) and are suitable in all pipe systems.

Easy Identification

All Full Flow valves are marked by laser, showing information about size, material and pressure class. The valves are also colour-coded to indicate the type of material. Green for stainless and red for galvanised steel.

Broen Full Flow valves have been developed to suit any application

Domestic Water

Broen Full Flow ensures that all standards that apply to water and domestic water systems are complied with. Stainless-steel Broen Full Flow valves are corrosion-resistant in relation to ordinary domestic water. All metal parts in Broen Full Flow valves used for domestic water are made from acid-proof stainless steel (AISI 316), which minimises the risk of mixing with other material types in corrosion-resistant installations.

Treated Water

Broen Full Flow ensures that all standards that apply to water and domestic water systems are complied with. Stainless-steel Broen Full Flow valves are corrosion-resistant in relation to ordinary domestic water. All metal parts in Broen Full Flow valves used for domestic water are made from acid-proof stainless steel (AISI 316), which minimises the risk of mixing with other material types in corrosion-resistant installations.

Heating Systems

The Broen Full Flow valve is the best solution for heating systems. Strict quality testing is carried out on every single compact valve throughout the entire production process and they are leak tested before they leave the factory. The combination of energy-optimised flow design and laser welding ensures that all fittings have very low internal flow resistance. Broen Full Flow valves are the optimal choice when energy efficiency is important.

Cooling Systems

Broen Full Flow is the valve of tomorrow when it comes to cooling installations. It delivers the same benefits you get with heating installations – an optimal energy-efficient solution with the lowest possible flow resistance. You can also choose the material that best suits the individual installation. Broen Full Flow valves with extended stems also help to ensure the correct diffusion-proof insulation of the entire installation.

Compressed Air

Broen Full Flow valves can be used in many different types of comPressed air installations. In consideration of water and oil content, the galvanized version can be used or the stainless steel version can be used when there is a need to meet more stringent requirements.

M profile jaws only (KemPress Stainless Steel Jaws).

2 Years

An intensive ISO 9001 certified quality control system is applied to all Kembla Broen Full Flow Valves to ensure they confirm to Watermark certification requirements.

MM Kembla warrants that if any installation using Kembla Broen Full Flow Valves becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.

PRODUCT TABLES – STAINLESS STEEL

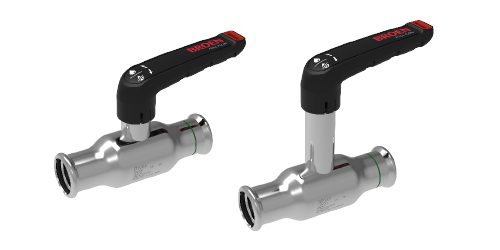

Lever HandleDNDim. (mm) Model IDItem Code
Low Stem BF201001DN1015 x 152010000100-0100X97300
High Stem BF201011DN1015 x 152010000101-0100X97306
Low Stem BF201001DN1518 x 182015000100-0100*
High Stem BF201001DN1518 x 182015000101-0100*
Low Stem BF201001DN2022 x 222020000100-0100X97301
High Stem BF201001DN2022 x 222020000101-0100X97307
Low Stem BF201001DN2528 x 282025000100-0100X97302
High Stem BF201001DN2528 x 282025000101-0100X97308
Low Stem BF201001DN3235 x 352032000100-0100X97303
High Stem BF201001DN3235 x 352032000101-0100X97309
Low Stem BF201001DN4042 x 422040000100-0100X97304
High Stem BF201001DN4042 x 422040000101-0100X97310
Low Stem BF201001DN5054 x 542050000100-0100X97305
High Stem BF201001DN5054 x 542050000101-0100X97311
* Available upon request (lead times may apply)

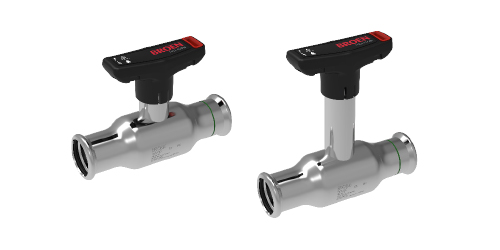

T HandleDNDim. (mm) Model IDItem Code
Low Stem BF201004DN1015 x 152010000100-0400X97316
High Stem BF201014DN1015 x 152010000101-0400*
Low Stem BF201004DN1518 x 182015000100-0400*
High Stem BF201014DN1518 x 182015000101-0400*
Low Stem BF201004DN2022 x 222020000100-0400X97317
High Stem BF201014DN2022 x 222020000101-0400*
Low Stem BF201004DN2528 x 282025000100-0400X97318
High Stem BF201014DN2528 x 282025000101-0400*
Low Stem BF201004DN3235 x 352032000100-0400*
High Stem BF201014DN3235 x 352032000101-0400*
* Available upon request (lead times may apply)

Gear HandleDNDim. (mm) Model IDItem Code
Low Stem BF201002DN1015 x 152010000100-0200*
High Stem BF201012DN1015 x 152010000101-0200*
Low Stem BF201002DN1518 x 182015000100-0200*
High Stem BF201012DN1518 x 182015000101-0200*
Low Stem BF201002DN2022 x 222020000100-0200*
High Stem BF201012DN2022 x 222020000101-0200*
Low Stem BF201002DN2528 x 282025000100-0200*
High Stem BF201012DN2528 x 282025000101-0200*
Low Stem BF201002DN3235 x 352032000100-0200*
High Stem BF201012DN3235 x 352032000101-0200*
Low Stem BF201002DN4042 x 422040000100-0200X97312
High Stem BF201012DN4042 x 422040000101-0200X97314
Low Stem BF201002DN5054 x 542050000100-0200X97313
High Stem BF201012DN5054 x 542050000101-0200X97315
* Available upon request (lead times may apply)

Lever HandleDNDim. (mm) Model IDItem Code
Low Stem BF201001DN101/2" x 152010001010-0100X973328
High Stem BF201011DN101/2" x 152010001011-0100*
Low Stem BF201001DN153/4" x 182015001010-0100*
High Stem BF201011DN153/4" x 182015001011-0100*
Low Stem BF201001DN203/4" x 222020001010-0100X97329
High Stem BF201011DN203/4" x 222020001011-0100*
Low Stem BF201001DN251" x 282025001010-0100X97330
High Stem BF201011DN251" x 282025001011-0100*
Low Stem BF201001DN321 1/4" x 352032001010-0100X97331
High Stem BF201011DN321 1/4" x 352032001011-0100*
Low Stem BF201001DN401 1/2" x 422040001010-0100X97332
High Stem BF201011DN401 1/2" x 422040001011-0100*
Low Stem BF201001DN502" x 542050001010-0100X97333
High Stem BF201011DN502" x 542050001011-0100*
* Available upon request (lead times may apply)

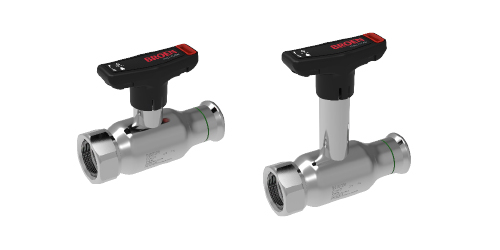

T HandleDNDim. (mm) Model IDItem Code
Low Stem BF201004DN101/2" x 152010001010-0400X97337
High Stem BF201014DN101/2" x 152010001011-0400*
Low Stem BF201004DN153/4" x 182015001010-0400*
High Stem BF201014DN153/4" x 182015001011-0400*
Low Stem BF201004DN203/4" x 222020001000-0400X97338
High Stem BF201014DN203/4" x 222020001001-0400*
Low Stem BF201004DN251" x 282025001000-0400X97339
High Stem BF201014DN251" x 282025001001-0400*
Low Stem BF201004DN321 1/4" x 352032001000-0400*
High Stem BF201014DN321 1/4" x 352032001001-0400*
* Available upon request (lead times may apply)

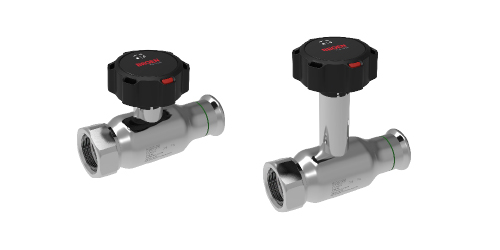

Gear HandleDNDim. (mm) Model IDItem Code
Low Stem BF201002DN101/2" x 152010001010-0200*
High Stem BF201012DN101/2" x 152010001011-0200*
Low Stem BF201002DN153/4" x 182015001010-0200*
High Stem BF201012DN153/4" x 182015001011-0200*
Low Stem BF201002DN203/4" x 222020001000-0200*
High Stem BF201012DN203/4" x 222020001001-0200*
Low Stem BF201002DN251" x 282025001000-0200*
High Stem BF201012DN251" x 282025001001-0200*
Low Stem BF201002DN321 1/4" x 352032001000-0200*
High Stem BF201012DN321 1/4" x 352032001001-0200*
Low Stem BF201002DN401 1/2" x 422040001000-0200*
High Stem BF201012DN401 1/2" x 422040001001-0200*
Low Stem BF201002DN502" x 542050001000-0200*
High Stem BF201012DN502" x 542050001001-0200*
* Available upon request (lead times may apply)

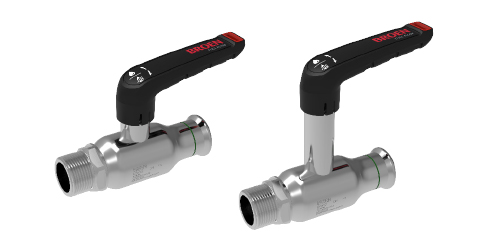

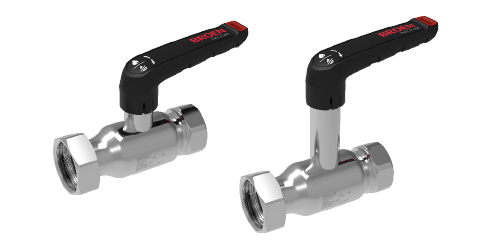

Lever HandleDNDim. (mm) Model IDItem Code
Low Stem BF201001DN101/2" x 152010001210-0100X97322
High Stem BF201011DN101/2" x 152010001211-0100*
Low Stem BF201001DN153/4" x 182015001210-0100*
High Stem BF201011DN153/4" x 182015001211-0100*
Low Stem BF201001DN203/4" x 222020001200-0100X97323
High Stem BF201011DN203/4" x 222020001201-0100*
Low Stem BF201001DN251" x 282025001200-0100X97324
High Stem BF201011DN251" x 282025001201-0100*
Low Stem BF201001DN321 1/4" x 352032001200-0100X97325
High Stem BF201011DN321 1/4" x 352032001201-0100*
Low Stem BF201001DN401 1/2" x 422040001200-0100X97326
High Stem BF201011DN401 1/2" x 422040001201-0100*
Low Stem BF201001DN502" x 542050001200-0100X97327
High Stem BF201011DN502" x 542050001201-0100*
* Available upon request (lead times may apply)

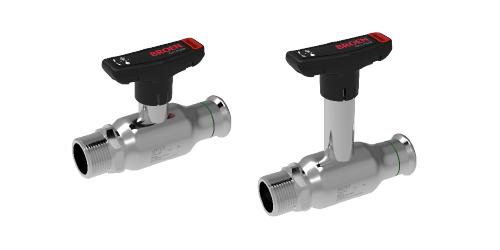

T HandleDNDim. (mm) Model IDItem Code
Low Stem BF201004DN101/2" x 152010001210-0400X97334
High Stem BF201014DN101/2" x 152010001211-0400*
Low Stem BF201004DN153/4" x 182015001210-0400*
High Stem BF201014DN153/4" x 182015001211-0400*
Low Stem BF201004DN203/4" x 222020001200-0400X97335
High Stem BF201014DN203/4" x 222020001201-0400*
Low Stem BF201004DN251" x 282025001200-0400X97336
High Stem BF201014DN251" x 282025001201-0400*
Low Stem BF201004DN321 1/4" x 352032001200-0400*
High Stem BF201014DN321 1/4" x 352032001201-0400*
* Available upon request (lead times may apply)

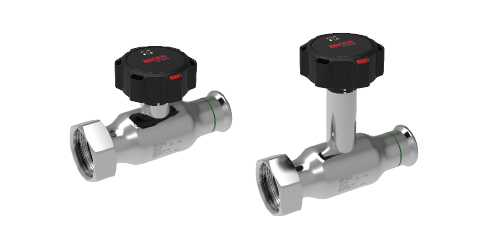

Gear HandleDNDim. (mm) Model IDItem Code
Low Stem BF220002DN101/2" x 152010001210-0200*
High Stem BF220012DN101/2" x 152010001211-0200*
Low Stem BF220002DN153/4" x 182015001210-0200*
High Stem BF220012DN153/4" x 182015001211-0200*
Low Stem BF220002DN203/4" x 222020001200-0200*
High Stem BF220012DN203/4" x 222020001201-0200*
Low Stem BF220002DN251" x 282025001200-0200*
High Stem BF220012DN251" x 282025001201-0200*
Low Stem BF220002DN321 1/4" x 352032001200-0200*
High Stem BF220012DN321 1/4" x 352032001201-0200*
Low Stem BF220002DN401 1/2" x 422040001200-0200*
High Stem BF220012DN401 1/2" x 422040001201-0200*
Low Stem BF220002DN502" x 542050001200-0200*
High Stem BF220012DN502" x 542050001201-0200*
* Available upon request (lead times may apply)

Lever HandleDNDim. (mm) Model IDItem Code
Low Stem BF214001DN103/4" x 152010001410-0100*
High Stem BF214011DN103/4" x 152010001411-0100*
Low Stem BF214001DN153/4" x 182015001400-0100*
High Stem BF214011DN153/4" x 182015001401-0100*
Low Stem BF214001DN203/4" x 222020001410-0100*
High Stem BF214011DN203/4" x 222020001411-0100*
Low Stem BF214001DN251 1/4" x 282025001400-0100*
High Stem BF214011DN251 1/4" x 282025001401-0100*
Low Stem BF214001DN321 1/2" x 352032001400-0100*
High Stem BF214011DN321 1/2" x 352032001401-0100*
Low Stem BF214001DN401 3/4" x 422040001400-0100*
High Stem BF214011DN401 3/4" x 422040001401-0100*
Low Stem BF214001DN502 1/4" x 542050001400-0100*
High Stem BF214011DN502 1/4" x 542050001401-0100*
* Available upon request (lead times may apply)

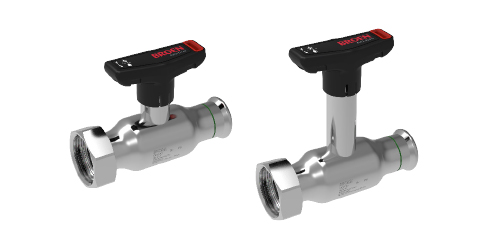

T HandleDNDim. (mm) Model IDItem Code
Low Stem BF214004DN103/4" x 152010001410-0400X97319
High Stem BF214014DN103/4" x 152010001411-0400*
Low Stem BF214004DN153/4" x 182015001410-0400*
High Stem BF214014DN153/4" x 182015001411-0400*
Low Stem BF214004DN203/4" x 222020001410-0400X97320
High Stem BF214014DN203/4" x 222020001411-0400*
Low Stem BF214004DN251 1/4" x 282025001400-0400X97321
High Stem BF214014DN251 1/4" x 282025001401-0400*
Low Stem BF214004DN321 1/2" x 352032001400-0400*
High Stem BF214014DN321 1/2" x 352032001401-0400*
* Available upon request (lead times may apply)

Gear HandleDNDim. (mm) Model IDItem Code
Low Stem BF214002DN103/4" x 152010001410-0200*
High Stem BF214012DN103/4" x 152010001411-0200*
Low Stem BF214002DN153/4" x 182015001400-0200*
High Stem BF214012DN153/4" x 182015001401-0200*
Low Stem BF214002DN203/4" x 222020001410-0200*
High Stem BF214012DN203/4" x 222020001411-0200*
Low Stem BF214002DN251 1/4" x 282025001400-0200*
High Stem BF214012DN251 1/4" x 282025001401-0200*
Low Stem BF214002DN321 1/2" x 352032001400-0200*
High Stem BF214012DN321 1/2" x 352032001401-0200*
Low Stem BF214002DN401 3/4" x 422040001400-0200*
High Stem BF214012DN401 3/4" x 422040001401-0200*
Low Stem BF214002DN502 1/4" x 542040001400-0200*
High Stem BF214012DN502 1/4" x 542040001401-0200*
* Available upon request (lead times may apply)

Lever HandleDNDim. (mm) Model IDItem Code
Low Stem BF220001DN103/8" x 3/8"2010002000-0100*
High Stem BF220011DN103/8" x 3/8"2010002001-0100*
Low Stem BF220001DN151/2" x 1/2"2015002000-0100X97340
High Stem BF220011DN151/2" x 1/2"2015002001-0100X97346
Low Stem BF220001DN203/4" x 3/4"2020002000-0100X97341
High Stem BF220011DN203/4" x 3/4"2020002001-0100X97347
Low Stem BF220001DN251" x 1"2025002000-0100X97342
High Stem BF220011DN251" x 1"2025002001-0100X97348
Low Stem BF220001DN321 1/4" x 1 1/4"2032002000-0100X97343
High Stem BF220011DN321 1/4" x 1 1/4"2032002001-0100X97349
Low Stem BF220001DN401 1/2" x 1 1/2"2040002000-0100X97344
High Stem BF220011DN401 1/2" x 1 1/2"2040002001-0100X97350
Low Stem BF220001DN502" x 2"2050002000-0100X97345
High Stem BF220011DN502" x 2"2050002001-0100X97351
* Available upon request (lead times may apply)

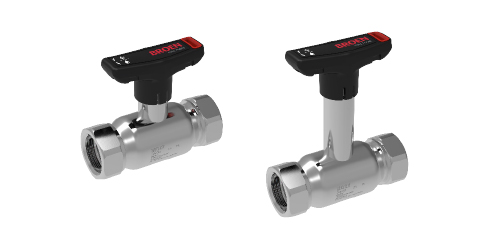

T HandleDNDim. (mm) Model IDItem Code
Low Stem BF212004DN103/8" x 3/8"2010002000-0400*
High Stem BF212014DN103/8" x 3/8"2010002001-0400*
Low Stem BF212004DN151/2" x 1/2"2015002000-0400*
High Stem BF212014DN151/2" x 1/2"2015002001-0400*
Low Stem BF212004DN203/4" x 3/4"2020002000-0400*
High Stem BF212014DN203/4" x 3/4"2020002001-0400*
Low Stem BF212004DN251" x 1"2025002000-0400*
High Stem BF212014DN251" x 1"2025002001-0400*
Low Stem BF212004DN321 1/4" x 1 1/4"2032002000-0400*
High Stem BF212014DN321 1/4" x 1 1/4"2032002001-0400*
* Available upon request (lead times may apply)

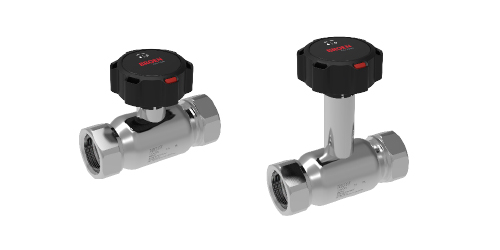

Gear HandleDNDim. (mm) Model IDItem Code
Low Stem BF212002DN103/8" x 3/8"2010002000-0200*
High Stem BF212012DN103/8" x 3/8"2010002001-0200*
Low Stem BF212002DN151/2" x 1/2"2015002000-0200*
High Stem BF212012DN151/2" x 1/2"2015002001-0200*
Low Stem BF212002DN203/4" x 3/4"2020002010-0200*
High Stem BF212012DN203/4" x 3/4"2020002001-0200*
Low Stem BF212002DN251" x 1"2025002000-0200*
High Stem BF212012DN251" x 1"2025002001-0200*
Low Stem BF212002DN321 1/4" x 1 1/4"2032002000-0200*
High Stem BF212012DN321 1/4" x 1 1/4"2032002001-0200*
Low Stem BF212002DN401 1/2" 1 1/2"2040002000-0200*
High Stem BF212012DN401 1/2" 1 1/2"2040002001-0200*
Low Stem BF212002DN502" x 22040002000-0200*
High Stem BF212012DN502" x 2"2040002001-0200*
* Available upon request (lead times may apply)

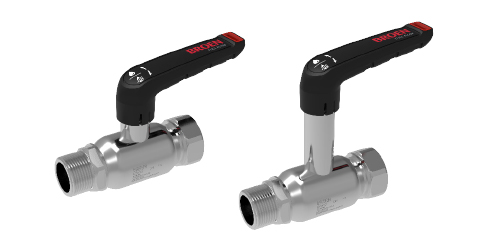

Lever HandleDNDim. (mm) Model IDItem Code
Low Stem BF222001DN101/2" x 3/8"2010002200-0100*
High Stem BF222011DN101/2" x 3/8"2010002201-0100*
Low Stem BF222001DN153/4" x 1/2"2015002200-0100*
High Stem BF222011DN153/4" x 1/2"2015002201-0100*
Low Stem BF222001DN203/4" x 3/4"2020002210-0100*
High Stem BF222011DN203/4" x 3/4"2020002211-0100*
Low Stem BF222001DN201" x 3/4"2020002200-0100*
High Stem BF222011DN201" x 3/4"2020002201-0100*
Low Stem BF222001DN251 1/4" x 1"2025002200-0100*
High Stem BF222011DN251 1/4" x 1"2025002201-0100*
Low Stem BF222001DN321 1/2" x 1 1/4"2032002200-0100*
High Stem BF222011DN321 1/2" x 1 1/4"2032002201-0100*
Low Stem BF222001DN402" x 1 1/2"2040002210-0100*
High Stem BF222011DN402" x 1 1/2"2040002211-0100*
Low Stem BF222001DN502 1/4" x 2"2050002200-0100*
High Stem BF222011DN502 1/4" x 2"2050002201-0100*
* Available upon request (lead times may apply)

T HandleDNDim. (mm) Model IDItem Code
Low Stem BF222004DN101/2" x 3/8"2010002200-0400*
High Stem BF222014DN101/2" x 3/8"2010002201-0400*
Low Stem BF222004DN153/4" x 1/2"2015002200-0400*
High Stem BF222014DN153/4" x 1/2"2015002201-0400*
Low Stem BF222004DN203/4" x 3/4"2020002210-0400*
High Stem BF222014DN203/4" x 3/4"2020002211-0400*
Low Stem BF222004DN201" x 3/4"2020002200-0400*
High Stem BF222014DN201" x 3/4"2020002201-0400*
Low Stem BF222004DN251 1/4" x 1"2025002200-0400*
High Stem BF222014DN251 1/4" x 1"2025002201-0400*
Low Stem BF222004DN321 1/2" x 1 1/4"2032002200-0400*
High Stem BF222014DN321 1/2" x 1 1/4"2032002201-0400*
* Available upon request (lead times may apply)

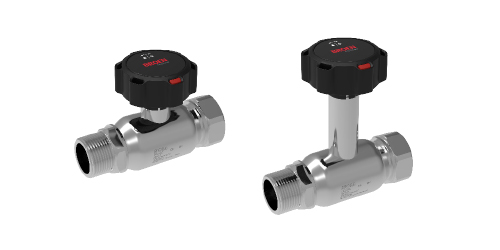

Gear HandleDNDim. (mm) Model IDItem Code
Low Stem BF222002DN101/2" x 3/8"2010002200-0200*
High Stem BF222012DN101/2" x 3/8"2010002201-0200*
Low Stem BF222002DN153/4" x 1/2"2015002200-0200*
High Stem BF222012DN153/4" x 1/2"2015002201-0200*
Low Stem BF222002DN203/4" x 3/4"2020002210-0200*
High Stem BF222012DN203/4" x 3/4"2020002211-0200*
Low Stem BF222002DN201" x 3/4"2020002200-0200*
High Stem BF222012DN201" x 3/4"2020002201-0200*
Low Stem BF222002DN251 1/4" x 1"2025002200-0200*
High Stem BF222012DN251 1/4" x 1"2025002201-0200*
Low Stem BF222002DN321 1/2" x 1 1/4"2032002200-0200*
High Stem BF222012DN321 1/2" x 1 1/4"2032002201-0200*
Low Stem BF222002DN402" x 1 1/2"2040002210-0200*
High Stem BF222012DN402" x 1 1/2"2040002211-0200*
Low Stem BF222002DN502 1/4" x 22040002200-0200*
High Stem BF222012DN502 1/4" x 2"2040002201-0200*
* Available upon request (lead times may apply)

L HandleDNDim. (mm) Model IDItem Code
Low Stem BF224001DN103/8" x 3/8"2010002400-0100*
High Stem BF22401DN103/8" x 3/8"2010002401-0100*
Low Stem BF224001DN151/2" x 1/2"2015002400-0100*
High Stem BF22401DN151/2" x 1/2"2015002401-0100*
Low Stem BF224001DN203/4" x 3/4"2020002400-0100*
High Stem BF22401DN203/4" x 3/4"2020002401-0100*
Low Stem BF224001DN251" x 1"2025002400-0100*
High Stem BF22401DN251" x 1"2025002401-0100*
Low Stem BF224001DN321 1/4" x 1 1/4"2032002400-0100*
High Stem BF22401DN321 1/4" x 1 1/4"2032002401-0100*
Low Stem BF224001DN401 1/2" x 1 1/2"2040002400-0100*
High Stem BF22401DN401 1/2" x 1 1/2"2040002401-0100*
Low Stem BF224001DN502" x 2"2050002400-0100*
High Stem BF22401DN502" x 2"2050002401-0100*
* Available upon request (lead times may apply)

T HandleDNDim. (mm) Model IDItem Code
Low Stem BF224004DN103/8" x 3/8"2010002400-0400*
High Stem BF224014DN103/8" x 3/8"2010002401-0400*
Low Stem BF224004DN151/2" x 1/2"2015002400-0400*
High Stem BF224014DN151/2" x 1/2"2015002401-0400*
Low Stem BF224004DN203/4" x 3/4"2020002400-0400*
High Stem BF224014DN203/4" x 3/4"2020002401-0400*
Low Stem BF224004DN251" x 1"2025002400-0400*
High Stem BF224014DN251" x 1"2025002401-0400*
Low Stem BF224004DN321 1/4" x 1 1/4"2032002400-0400*
High Stem BF224014DN321 1/4" x 1 1/4"2032002401-0400*
* Available upon request (lead times may apply)

Gear HandleDNDim. (mm) Model IDItem Code
Low Stem BF224002DN103/8" x 3/8"2010002400-0200*
High Stem BF224012DN103/8" x 3/8"2010002401-0200*
Low Stem BF224002DN151/2" x 1/2"2015002400-0200*
High Stem BF224012DN151/2" x 1/2"2015002401-0200*
Low Stem BF224002DN203/4" x 3/4"2020002400-0200*
High Stem BF224012DN203/4"x 3/4"2020002401-0200*
Low Stem BF224002DN251" x 1"2025002400-0200*
High Stem BF224012DN251" x 1"2025002401-0200*
Low Stem BF224002DN321 1/4" x 1 1/4"2032002400-0200*
High Stem BF224012DN321 1/4" x 1 1/4"2032002401-0200*
Low Stem BF224002DN401 1/2" x 1 1/2"2040002400-0200*
High Stem BF224012DN401 1/2" x 1 1/2"2040002401-0200*
Low Stem BF224002DN502" x 2"2050002400-0200*
High Stem BF224012DN502" x 2"2050002401-0200*
* Available upon request (lead times may apply)
Back to Standards

Kembla Broen Full Flow Valves – Galvanized Steel

Broen Full Flow Galvanized Steel valves can be used in applications such as:

  • Cooling systems (closed)
  • Central heating systems (closed)
  • District heating systems
  • Certain types of compressed air systems

KEMBLA BROEN FULL FLOW VALVE TECHNOLOGY

Designed and manufactured with risk minimisation and ease of use in mind, the Kembla Broen Full Flow valve Press-fit Connection System utilises unique features and technologies that deliver the reliability, efficiency and quality required by modern buildings.

Kembla Broen Full Flow is the most flexible valve available on the market. It provides many more options for complete solutions with uniform connection technology and material properties and delivers trouble-free operation in countless systems because its materials standards and technologies are uniform.

Kembla Broen Full Flow is the amalgamation of installation smarts, features and technology to provide a total package that reduces your risk and works with you on site to achieve the highest quality installation and protect your reputation.

The Kembla Broen Fun Flow valve technology package incorporates just some of the following unique features:

  • Compact Full Flow Design
  • Connection Flexibility
  • M Profile Press Connection Ends
  • Unique Valve Design
  • Easy Valve Identification/li>
  • Leak Before Press Tested
  • Corrosion Resistant 316 Stainless Steel

Compact Full Flow Design

The compact valve housing provides the best insulation option on the market, meeting modern HVAC system requirements.

Uniform Installation

Using the same materials for pipes and valves, which ensures minimum risk of corrosion.

Leak Before Press

All press valves are leak tested using “Leak Before Press”, which minimises the risk of leaks.

Unique Valve Design

All Full Flow valves are individually marked with a unique identification number and data matrix with information about process, quality and distribution.

Connection Flexibility

The Full Flow system can be quickly and easily connected to other connection technologies (Press, threaded or swivel nut) and are suitable in all pipe systems.

Easy Identification

All Full Flow valves are marked by laser, showing information about size, material and pressure class. The valves are also colour-coded to indicate the type of material. Green for stainless and red for galvanised steel.

Broen Full Flow valves have been developed to suit any application

Domestic Water

Broen Full Flow ensures that all standards that apply to water and domestic water systems are complied with. Stainless-steel Broen Full Flow valves are corrosion-resistant in relation to ordinary domestic water. All metal parts in Broen Full Flow valves used for domestic water are made from acid-proof stainless steel (AISI 316), which minimises the risk of mixing with other material types in corrosion-resistant installations.

Treated Water

Broen Full Flow ensures that all standards that apply to water and domestic water systems are complied with. Stainless-steel Broen Full Flow valves are corrosion-resistant in relation to ordinary domestic water. All metal parts in Broen Full Flow valves used for domestic water are made from acid-proof stainless steel (AISI 316), which minimises the risk of mixing with other material types in corrosion-resistant installations.

Heating Systems

The Broen Full Flow valve is the best solution for heating systems. Strict quality testing is carried out on every single compact valve throughout the entire production process and they are leak tested before they leave the factory. The combination of energy-optimised flow design and laser welding ensures that all fittings have very low internal flow resistance. Broen Full Flow valves are the optimal choice when energy efficiency is important.

Cooling Systems

Broen Full Flow is the valve of tomorrow when it comes to cooling installations. It delivers the same benefits you get with heating installations – an optimal energy-efficient solution with the lowest possible flow resistance. You can also choose the material that best suits the individual installation. Broen Full Flow valves with extended stems also help to ensure the correct diffusion-proof insulation of the entire installation.

Compressed Air

Broen Full Flow valves can be used in many different types of comPressed air installations. In consideration of water and oil content, the galvanized version can be used or the stainless steel version can be used when there is a need to meet more stringent requirements.

M profile jaws only (KemPress Stainless Steel Jaws).

2 Years

An intensive ISO 9001 certified quality control system is applied to all Kembla Broen Full Flow Valves to ensure they confirm to Watermark certification requirements.

MM Kembla warrants that if any installation using Kembla Broen Full Flow Valves becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.

PRODUCT TABLES – GALVANIZED STEEL

See brochure for more information.

SUPPORT: DOWNLOAD FILES

Australia & New Zealand standards brochures

BOOK A PRODUCT
DEMONSTRATION OR TRAINING

FIND A STOCKIST

CALL 1800 804 631
