The MM Kembla brand is renowned for producing the highest quality Kembla Copper Refrigeration Tube for HVAC and Refrigeration applications used in systems across Australia, New Zealand, Asia & The Middle East.

All Kembla Copper Refrigeration Tube is manufactured with the highest quality copper, superior wall thickness control for high pressure applications and optimal conditions for use with press fittings, and exhibits exceptional internal cleanliness that exceeds standard requirements. Kembla Copper Refrigeration Tube is available to 3 international standards including: AS/NZS 1571, BS EN 12735 and ASTM B280

MM KEMBLA
PAIRCOILMAX

MM KEMBLA
PAIRCOILONYX

MM KEMBLA
STANDARD PAIRCOIL

Kembla PairCoilMAX

Kembla PairCoilMAX is the highest quality solution for pre-insulated fire retardant paircoil for use with split system air conditioners. Meeting the fire safety regulations of the Building Code of Australia (BCA) for Class 2-9 buildings, PairCoilMAX combines all the benefits of Kembla Copper Tube and Kembla Insulation by K-Flex to provides you with a safer and easy to install pre-insulated piping solution for air conditioning installations. Available in 13mm and 19mm wall thickness to suit the thermal resistance requirements in different regions across Australia, PairCoilMAX meets the requirements of insulation material as per AS/NZS 4859.1 and fire performance testing requirements of AS 1530.3 All PairCoilMAX is manufactured to AS/NZS1571 and is suitable for use with high pressure refrigerants R410A and R32.

  • Split system air conditioners
  • Thermal insulation
  • Fire rating and performance
  • Suitable for R410A and R32 refrigerants
  • Condensation prevention
  • Pre-insulated with fire retardant nitrile rubber foam that meets insulation requirements of AS/NZS 4859.1 and fire performance testing of AS 1530.1.
  • Copper tube manufactured to AS/NZS 1571
  • All sizes suitable for use with R410A and R32 high pressure refrigerants
  • High water vapour diffusion resistance
  • High insulation thermal resistance with material thermal conductivity of (0.032W/M.k at 0°C)
  • Suitable for applications ranging from -200°C to +116°C
  • Available in 13mm and 19mm insulation
  • Pre-insulated piping that is easy to install. No glue, tape or messy powder
  • Easy to split the pair when connecting to air conditioning system units.
  • Low thermal conductivity of 0.032W/m.K improves system performance and energy efficiency
  • Low flame spread and does not generate flaming droplets
  • Self-extinguishes in case of fire
  • Low smoke development index
  • Compliant to the requirements of the Australian Building Code Board’s (ABCB) National Construction Code (NCC) 2019 edition
  • Resistant to growth of bacteria and mould
  • Backed by MM Kembla’s reputation for quality, reliability and service for over 100 years
  • 25 Year Manufacturers Warranty on copper tube
  • Stocked nationwide for prompt delivery

25 Years on copper tube

MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla PairCoilMAX to ensure it conforms to the relevant local/international product standard requirements.

MM Kembla warrants that if any installation using MM Kembla PairCoilMAX becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.

Kembla PairCoilMAX – Product Table

Material:Highly Flexible 13mm & 19mm paired tubular closed cell elastomeric nitrile rubber foam
Thermal conductivity:0.034 W/m.K at 23°C
Water Absorption:0.0029 g/100cm2
Vapour Barrier:≥10,000µ
Mildew Resistance:No fungal growth
Working Temperature:-200°C - +116°C Range
Fire Hazard Properties:Spread of Flame Index 0
Smoke Development Index 5
Tested in accordance with AS1530.3
Pipe Insulation:AS/NZS 4859.1
Copper Tube:AS/NZS 1571
Item
Code
Copper tube outside diameter x wall thickness (mm)Copper tube outside diameter (inches)R-ValuePaircoil length (m)Total pack weight (kg)
13mm Insulation Wall Thickness
T996156.35 x 0.81 - 9.52 x 0.811/4 - 3/80.72011.36
T996256.35 x 0.81 - 12.70 x 0.811/4 - 1/20.62013.00
T996356.35 x 0.81 - 15.88 x 1.021/4 - 5/80.62016.58
T996559.52 x 0.81 - 15.88 x 1.023/8 - 5/80.62018.22
19mm Insulation Wall Thickness
T997156.35 x 0.81 - 9.52 x 0.811/4 - 3/81.11812.90
T997256.35 x 0.81 - 12.70 x 0.811/4 - 1/21.01814.38
T997356.35 x 0.81 - 15.88 x 1.021/4 - 5/81.01818.05
T997559.52 x 0.81 - 15.88 x 1.023/8 - 5/81.01819.52
T997659.52 x 0.81 - 19.05 x 1.143/8 - 3/40.91823.09

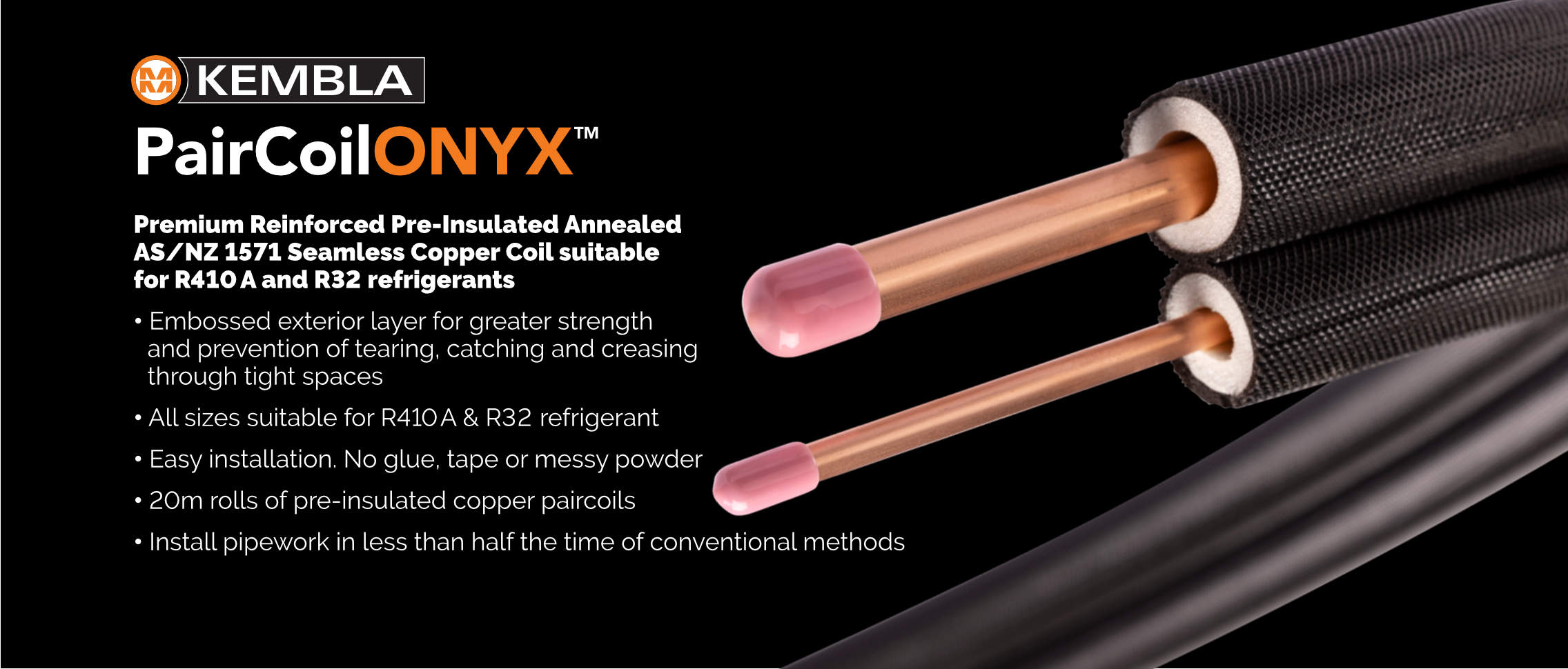

Kembla PairCoilONYX

PairCoilONYX is a high quality solution for reinforced pre-insulated annealed copper coil for use with split system air conditioners. With an embossed reinforced PE exterior, for greater strength and prevention of tearing, catching and creasing through tight spaces, PairCoilONYX allows for easy, trouble-free installation. Easy to install 20 metre rolls of pre-insulated copper paircoils allows you to install your pipework in less than half the time of conventional methods and avoid the use of messy glue or tape. All sizes of Kembla PairCoilONYX are manufactured to AS/NZS1571 and is suitable for use with high pressure refrigerants R410A and R32 as well meeting the minimum wall thickness requirements of the world’s leading air conditioner manufacturers.

  • Domestic Split system air conditioners
  • Condensation prevention
  • Suitable for R410A and R32 refrigerants
  • Polyethylene (PE) outer layer, Irradiation Cross-linked Polyolefin (IXPE) middle layer, Low Density Polyethylene (LDPE) closed cell inner layer
  • Copper tube manufactured to AS/NZS 1571
  • All sizes suitable for use with R410A and R32 high pressure refrigerants
  • Material thermal conductivity of (0.043W/M.k at 20°C)
  • Suitable for applications up 120°C. Recommended maximum operating temperature is 65°C and in accordance with AS1677.
  • Embossed reinforced PE exterior, for greater strength and prevention of tearing, catching and creasing through tight spaces
  • 20m rolls of pre-insulated copper paircoils allows you to install your pipework in less than half the time of conventional methods.
  • Easy installation. No glue, tape or messy powder.
  • Flame Spread Index of 15 and Smoke Developed Index of 90 when tested in accordance with ASTM E84-21a.
  • All sizes suitable for R410A & R32 refrigerant
  • 25 Year Manufacturers Warranty on copper tube
Recommended maximum operating temperature is 65°C and in accordance with AS1677. A/C manufacturer’s operating and installation instructions should be consulted.

Kembla PairCoil copper tube is recommended to be flare jointed. If brazing is necessary, all safety precautions should apply.
If tight bending is required, the insulation can be cut back to accommodate a tube bender. Alternatively, a length of polyethylene tube can be inserted to prevent kinking.

25 Years on copper tube

MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla PairCoilONYX to ensure it conforms to the relevant local/international product standard requirements.

MM Kembla warrants that if any installation using MM Kembla PairCoilONYX becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.

Kembla PairCoilONYX – Product Table

Material:Polyethylene (PE) outer layer, Irradiation Cross-linked Polyolefin (IXPE) middle layer, Low Density Polyethylene (LDPE) closed cell inner layer.
Thermal conductivity:<0.043 W/m.k at 20°C
Working Temperature:-40°C -120°C Range
Tensile Strength>14MPa
Water Absorption:<2.0%
Thickness Shrinkage<7%
Flame Spread Index*FSI 15
Smoke Developed Index*SDI 90
Kembla product codeCopper tube outside diameter
 x wall thickness (mm)Copper tube outside diameter (inches)
R-Values
Paircoil length (m)Total pack Total pack (kg)
T995176.35 x 0.81 - 9.52 x 0.811/4 - 3/80.3208.0
T995276.35 x 0.81 - 12.70 x 0.811/4 - 1/20.3209.7
T99537*6.35 x 0.81 - 15.88 x 1.021/4 - 5/80.32013.3
T99547*9.52 x 0.81 - 12.70 x 0.813/8 - 1/20.32011.8
T99557*9.52 x 0.81 - 15.88 x 1.023/8 - 5/80.32014.8
T99567*9.52 x 0.81 - 19.05 x 1.143/8 - 3/40.32018.0
T99577*12.70 x 0.81 - 19.05 x 1.141/2 - 3/40.32019.8

*Sizes available upon request. Lead times may apply. For further information please contact MM Kembla.

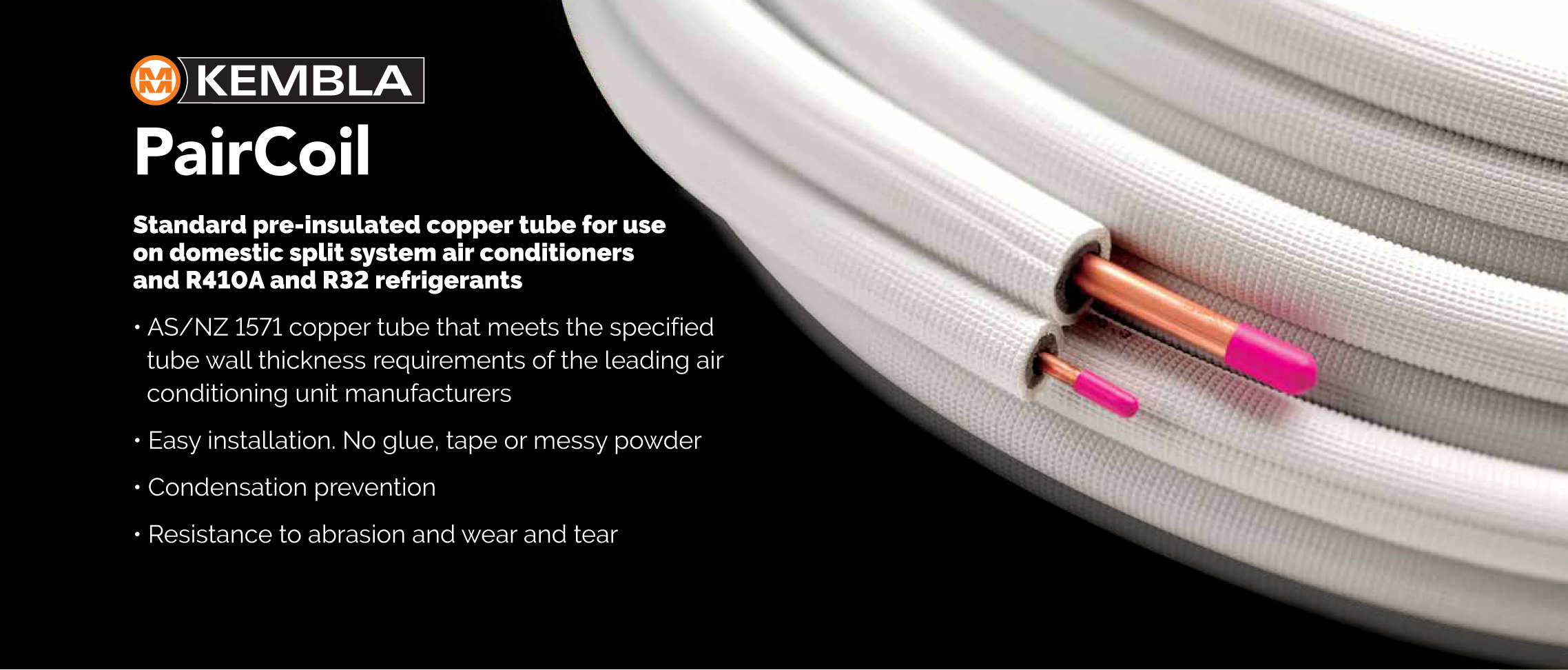

Kembla Standard PairCoil

Kembla PairCoil is the highest quality solution for pre-insulated PairCoil for use with domestic split system air conditioners. For buildings not requiring the additional fire safety regulations of the Building Code of Australia (BCA), Kembla Paircoil is a cost effective solution that meet the insulation requirements of domestic split system air conditioners. Easy to install 20 metre pre-insulated copper tube allowing you to install your pipework in less than half the time of conventional methods and avoid the use of messy glue or tape. Produced to be resistant to abrasion and wear and tear, Kembla PairCoil can be pushed through tight spaces without being caught or torn. All sizes of Kembla PairCoil are manufactured to AS/NZS1571 and is suitable for use with high pressure refrigerants R410A and R32 as well meeting the minimum wall thickness requirements of the world’s leading air conditioner manufacturers.

  • Domestic Split system air conditioners
  • Condensation prevention
  • Suitable for R410A and R32 refrigerants
  • Pre-insulated with highly flexible paired, cross linked closed cell polyethylene
  • Copper tube manufactured to AS/NZS 1571
  • All sizes suitable for use with R410A and R32 high pressure refrigerants
  • High water vapour diffusion resistance
  • Material thermal conductivity of (0.037W/M.k at 20°C)
  • Suitable for applications up 120°C. Recommended maximum operating temperature is 65°C and in accordance with AS1677.
  • Pre-insulated piping that is easy to install. No glue, tape or messy powder
  • Easy to split the pair when connecting to air conditioning system units.
  • Prevents condensation on piping and enhances system performance and efficiency
  • Meets the minimum wall thickness of leading air conditioning manufacturers and the minimum requirements for flaring of copper tube
  • Backed by MM Kembla’s reputation for quality, reliability and service for over 100 years
  • 25 Year Manufacturer’s Warranty on copper tube
  • Stocked nationwide for prompt delivery
Recommended maximum operating temperature is 65°C and in accordance with AS1677. A/C manufacturer’s operating and installation instructions should be consulted.

Kembla PairCoil copper tube is recommended to be flare jointed. If brazing is necessary, all safety precautions should apply.

If tight bending is required, the insulation can be cut back to accommodate a tube bender. Alternatively, a length of polyethylene tube can be inserted to prevent kinking.

25 Years on copper tube

MM Kembla’s manufacturing processes and quality systems are built upon over 100 years of experience in manufacturing copper tube in Port Kembla, Australia. An intensive ISO 9001 certified quality control system is applied to all MM Kembla PairCoilMAX to ensure it conforms to the relevant local/international product standard requirements.

MM Kembla warrants that if any installation using MM Kembla PairCoilMAX becomes defective or fails and MM Kembla is notified of the details and is satisfied that the defect or failure was a result of a manufacturing defect and not the result of faulty specification, installation or incompatible environment, MM Kembla will replace or repair the defective goods and make good the installation.

Kembla PairCoil – Product Table

Material:Highly flexible paired, cross linked closed cell polyethylene
Thermal conductivity:0.037 W/m.K at 20°C
Water Absorption:0.0076 max g/100cm2
Working Temperature:Up to 120°C
Copper Tube:AS/NZS 1571
Item
Code
Copper tube outside diameter x wall thickness (mm)Copper tube outside diameter (inches)R-ValuePaircoil length (m)Total pack weight (kg)
T995156.35 x 0.81 - 9.52 x 0.811/4 - 3/80.2208.19
T995256.35 x 0.81 - 12.70 x 0.811/4 - 1/20.2209.92
T995356.35 x 0.81 - 15.88 x 1.021/4 - 5/80.22013.37
T995559.52 x 0.81 - 15.88 x 1.023/8 - 5/80.22015.12
T995659.52 x 0.81 - 19.05 x 1.143/8 - 3/40.22018.30
