MM Kembla has combined the experience and knowledge of over 100 years of Australian copper tube manufacturing with press-fit technology and engineering to produce the KemPress® press-fit connection system. The high quality, lightweight, slim and smart KemPress tools provide the highest quality connection and unique features to provide risk minimisation on site and improved productivity and performance for Copper and Stainless Steel press-fittings.
The new KPS2 and KPL3 tools are now equipped with Bluetooth Connectivity so you can track your press and tool performance anytime using the NovoCheck app and your smart phone or tablet.
KemPress® Tools for Copper Press-Fittings to AS3688
KemPress KPS2 Tool
The KPS2 tool is the smallest and lightest tool in the range, suitable for pressing up to DN32 in copper and 28mm Stainless Steel fittings (using KemPress EN Stainless Steel jaws). Equipped with V profile KemPress jaws suitable for press fittings manufactured to Australian Standard AS3688, the KPS2’s compact design means you can comfortably operate it with one hand. The KPS2 comes equipped with the following features:
- 4 High quality V Profile Jaws (DN15, DN20, DN25 & DN32)
- Operated by powerful 12V Milwaukee Lithium-Ion Batteries
- Automatic Pressing cycle that one started will complete a full press
- Electronic locking bolt for added safety. The KPS tool will only start after your jaws have been inserted and locking bolt has been fully engaged.
- Smart LED display showing battery status and incomplete/interrupted press indicator
- 35,000 press maintenance interval
- Illumination of the press area to make life easier in poorly lit environments
- Bluetooth enabled so you can monitor your tool performance, service log, perform pre-start checks and monitor and report on your press performance straight from your smart phone or tablet using the NovoCheck app.
KemPress KPL3 Tool
The KPL3 tool packs the punch of 32 kN of piston force and Brushless Motor technology in a compact, slim and lightweight design that is suitable for pressing up to DN100 in copper and 54mm Stainless Steel fittings (using KemPress EN Stainless Steel jaws). Equipped with V profile KemPress jaws and collars suitable for press fittings manufactured to Australian Standard AS3688, the KPL3 provides you with the flexibility and performance to press the entire range of KemPress fittings. The KPL3 comes equipped with the following features:
- 6 High quality V Profile Jaws (DN15, DN20, DN25 & DN32, DN40 & DN50)
- High quality V Profile DN65, DN80 & DN100 Collar and Adaptor Jaw Kit (Sold separately)
- Brushless Motor Technology that reduces the frequency of tool servicing, provides faster pressing cycles and provides the energy efficiency to achieve up to 40% more press cycles per battery charge.
- Operated by powerful 18V Milwaukee Lithium-Ion Batteries
- Automatic Pressing cycle that one started will complete a full press
- Electronic locking bolt for added safety. The KPL3 tool will only start after your jaws have been inserted and locking bolt has been fully engaged.
- Smart LED display showing battery status and incomplete/interrupted press indicator
- 2 year maintenance interval
- Illumination of the press area to make life easier in poorly lit environments
- Bluetooth enabled so you can monitor your tool performance, service log, perform pre-start checks and monitor and report on your press performance straight from your smart phone or tablet using the NovoCheck app.
NovoCheck App
KemPress KPS2 and KPL3 press tools are equipped with smart Bluetooth technology so you can stay fully connected with your job site and installation performance. The innovative technology combined with the Novocheck App means you can manage the job straight from your smart phone or tablet.
The ability to monitor and maintain your tool performance as well as installation performance reduces installation risk and increases the quality of your installations. Pre-start tool checks will ensure your tools are ready to work, service logs will mean you can see when your tool needs its next service and generation of site reports means you can detect any unpressed fittings by comparing the number of completed presses to those required on each section of work.
Download the NovoCheck App from the App Store or Google Play and connect with your tool today.
KemPress® Tools for EN standard Copper Press-Fittings
MM Kembla’s KemPress® battery powered hydraulic press tools suitable for use on EN standard press fittings and EN 1057 Copper Tube are the lightest and smartest tools on the market with a patented one hand operation and long maintenance intervals. Their ergonomical and lightweight slim line design makes long hours of pressing a breeze and are especially practical when pressing in tight spaces. The latest KemPress tool models are equipped with Bluetooth connectivity so you can track your press and tool performance anytime using the NovoCheck app and your smart phone or tablet. KemPress tools are available in 3 models to press fittings sizes from 15mm up to 100mm.
KemPress KPSA2 Tool
The KPSA2 tool is the smallest and lightest tool in the range, suitable for pressing up to 35mm in copper and 28mm Stainless Steel fittings. The KPSA2 comes equipped with the following features:
- 4 High quality M Profile Jaws (15mm, 20mm, 25mm & 32mm) suitable for use on EN 1057 copper tube
- Operated by powerful 12V Milwaukee Lithium-Ion Batteries
- Automatic Pressing cycle that one started will complete a full press
- Electronic locking bolt for added safety. The KPSA2 tool will only start after your jaws have been inserted and locking bolt has been fully engaged.
- Smart LED display showing battery status and incomplete/interrupted press indicator
- 35,000 press maintenance interval
- Illumination of the press area to make life easier in poorly lit environments
- Bluetooth enabled so you can monitor your tool performance, service log, perform pre-start checks and monitor and report on your press performance straight from your smart phone or tablet using the NovoCheck app.
KemPress KPL3 EN Tool
The KPL3 EN tool packs the punch of 32 kN of piston force and Brushless Motor technology in a compact, slim and lightweight design that is suitable for pressing up to 54mm Copper and Stainless Steel fittings. The KPL3 EN comes equipped with the following features:
- 4 High quality SA Profile Jaws (15mm, 22mm, 28mm & 35mm) suitable for use on EN 1057 copper tube
- High quality Collars (42mm & 54mm) and ZB203 Adaptor Jaw suitable for use on EN 1057 copper tube
- Brushless Motor Technology that reduces the frequency of tool servicing, provides faster pressing cycles and provides the energy efficiency to achieve up to 40% more press cycles per battery charge.
- Operated by powerful 18V Milwaukee Lithium-Ion Batteries
- Automatic Pressing cycle that one started will complete a full press
- Electronic locking bolt for added safety. The KPS tool will only start after your jaws have been inserted and locking bolt has been fully engaged.
- Smart LED display showing battery status and incomplete/interrupted press indicator
- 2 year maintenance interval
- Illumination of the press area to make life easier in poorly lit environments
- Bluetooth enabled so you can monitor your tool performance, service log, perform pre-start checks and monitor and report on your press performance straight from your smart phone or tablet using the NovoCheck app.
KemPress KPXL2 EN
The KemPress KPXL2 tool packs the extra punch required to press EN copper sizes above 54mm and up to 108mm. The KPXL2 is equipped with a longer stroke of 80mm and constant press force of 32 kN in a slim and lightweight design that is suitable for pressing up to 108mm Copper and Stainless Steel fittings. The KPXL 2 EN comes equipped with the following features:
- 4 High quality SA Profile Jaws (15mm, 20mm, 25mm & 32mm) suitable for use on EN 1057 copper tube
- High quality Collars (42mm & 54mm) and ZB203 Adaptor Jaw suitable for use on EN 1057 copper tube
- 67mm, 76.1mm and 108mm Collars and ZB221 (for 67mm, 76mm and 108mm) and ZB222 (2nd press of 108mm) Adaptor Jaws suitable for use on EN 1057 copper tube
- Back-stroke limiter – user can shorten the stroke to 40mm when using jaws up to 32mm to shorten the pressing time
- Operated by powerful 18V Milwaukee Lithium-Ion Batteries
- Automatic Pressing cycle that one started will complete a full press
- Smart LED display showing battery status and incomplete/interrupted press indicator
- 2 year maintenance interval
- Rotatable head for narrow installation points
NovoCheck App
KemPress KPS2A and KPL3 EN press tools are equipped with smart Bluetooth technology so you can stay fully connected with your job site and installation performance. The innovative technology combined with the Novocheck App means you can manage the job straight from your smart phone or tablet.
The ability to monitor and maintain your tool performance as well as installation performance reduces installation risk and increases the quality of your installations. Pre-start tool checks will ensure your tools are ready to work, service logs will mean you can see when your tool needs its next service and generation of site reports means you can detect any unpressed fittings by comparing the number of completed presses to those required on each section of work.
Download the NovoCheck App from the App Store or Google Play and connect with your tool today.
KemPress® Tools for KemPress 316L Stainless Steel System
MM Kembla’s KemPress® battery powered hydraulic press tools suitable for use on KemPress 316L Stainless Steel fittings are the lightest and smartest tools on the market with a patented one hand operation and long maintenance intervals. Their ergonomical and lightweight slim line design makes long hours of pressing a breeze and are especially practical when pressing in tight spaces. The latest KemPress tool models are equipped with Bluetooth connectivity so you can track your press and tool performance anytime using the NovoCheck app and your smart phone or tablet. KemPress tools are available in 3 models to press fittings sizes from 15mm up to 100mm.
If you are working on a small project, KemPress Stainless steel tools are also available to hire. Contact us on sales@kembla.com.au or 1800 804 631 to find out how to hire KemPress Stainless Steel tools.
KemPress KPS2 SS Tool
The KPS2 SS tool is the smallest and lightest tool in the range, suitable for pressing up to 28mm Stainless Steel fittings and DN32 copper (with the use of AS3688 KemPress Copper Jaws). The KPS2’s compact design means you can comfortably operate it with one hand. The KPS2 comes equipped with the following features:
- 3 High quality M Profile Jaws (15mm, 22mm & 28mm)
- Operated by powerful 12V Milwaukee Lithium-Ion Batteries
- Automatic Pressing cycle that one started will complete a full press
- Electronic locking bolt for added safety. The KPSA2 tool will only start after your jaws have been inserted and locking bolt has been fully engaged.
- Smart LED display showing battery status and incomplete/interrupted press indicator
- 35,000 press maintenance interval
- Illumination of the press area to make life easier in poorly lit environments
- Bluetooth enabled so you can monitor your tool performance, service log, perform pre-start checks and monitor and report on your press performance straight from your smart phone or tablet using the NovoCheck app.
KemPress KPL2 SS Tool
The KPL2 SS tool packs the punch of 32 kN of piston force and Brushless Motor technology in a compact, slim and lightweight design that is suitable for pressing up to 54mm Stainless Steel fittings and 100mm copper fittings (with the use of AS3688 jaws and collars sold separately). The KPL2 SS comes equipped with the following features:
- 4 High quality M Profile Jaws (15mm, 22mm, 28mm & 35mm)
- 2 High quality Collars (42mm & 54mm) and ZB203 Adaptor Jaw – Sold separately
- Brushless Motor Technology that reduces the frequency of tool servicing, provides faster pressing cycles and provides the energy efficiency to achieve up to 40% more press cycles per battery charge.
- Operated by powerful 18V Milwaukee Lithium-Ion Batteries
- Automatic Pressing cycle that one started will complete a full press
- Electronic locking bolt for added safety. The KPL2 tool will only start after your jaws have been inserted and locking bolt has been fully engaged.
- Smart LED display showing battery status and incomplete/interrupted press indicator
- 2 year maintenance interval
- Illumination of the press area to make life easier in poorly lit environments
KemPress KPXL2 SS
The KemPress KPXL2 tool packs the extra punch required to press stainless steel sizes up to 108mm and up to DN100 in copper (with the use of AS3688 KemPress Copper Jaws, Colalrs & Adaptor Jaws sold separately). The KPXL2 is equipped with a longer stroke of 80mm and constant press force of 32 kN in a slim and lightweight design that is suitable for pressing up to 108mm Copper and Stainless Steel fittings. The KPXL 2 EN comes equipped with the following features:
- 4 High quality M Profile Jaws (15mm, 22mm, 28mm & 35mm)
- High quality Collars (42mm & 54mm) and ZB203 Adaptor Jaw – Sold separately
- 67mm, 76.1mm and 108mm Collars and ZB221 (for 67mm, 76mm and 108mm) and ZB222 (2nd press of 108mm) Adaptor Jaws – Sold separately
- Back-stroke limiter – user can shorten the stroke to 40mm when using jaws up to 35mm to shorten the pressing time
- Operated by powerful 18V Milwaukee Lithium-Ion Batteries
- Automatic Pressing cycle that one started will complete a full press
- Smart LED display showing battery status and incomplete/interrupted press indicator
- 2 year maintenance interval
- Rotatable head for narrow installation points
NovoCheck App
KemPress KPS2A and KPL3 EN press tools are equipped with smart Bluetooth technology so you can stay fully connected with your job site and installation performance. The innovative technology combined with the Novocheck App means you can manage the job straight from your smart phone or tablet.
The ability to monitor and maintain your tool performance as well as installation performance reduces installation risk and increases the quality of your installations. Pre-start tool checks will ensure your tools are ready to work, service logs will mean you can see when your tool needs its next service and generation of site reports means you can detect any unpressed fittings by comparing the number of completed presses to those required on each section of work.
Download the NovoCheck App from the App Store or Google Play and connect with your tool today.
| KPS2 SS (X97516) | KPL2 SS (X97504) | KPXL2 SS (X97514) |
|||
|---|---|---|---|---|---|
| Dimensions (Stainless Steel) | 15mm to 28mm | 15mm to 54mm | 15mm to 108mm | ||
| Weight incl. Battery | 1.7 kg | 2.8 kg | 3.9kg | ||
| Length | 320 mm | 387 mm | 480 mm | ||
| Widthg | 98 mm | 75 mm | 83 mm | ||
| Height | 72 mm | 111 mm | 113 mm | ||
| Power consumption | 240 W | 450 W | 450 W | ||
| Piston Force (minimum press force) | 21kN | 32 kN | 32kN | ||
| Piston stroke | 30mm | 40 mm | 80 mm | ||
| Battery | 12V/1.5 Ah Li-Ion | 18V/1.5 Ah Li-Ion | 18V/3.0 Ah Li-Ion | ||
| Charging time | 30 min | 30 min | 60 min | ||
| Number of press before service | 40,000 cycles every 2 years | Unlimited, service every 2 years | Unlimited, service every 2 years |

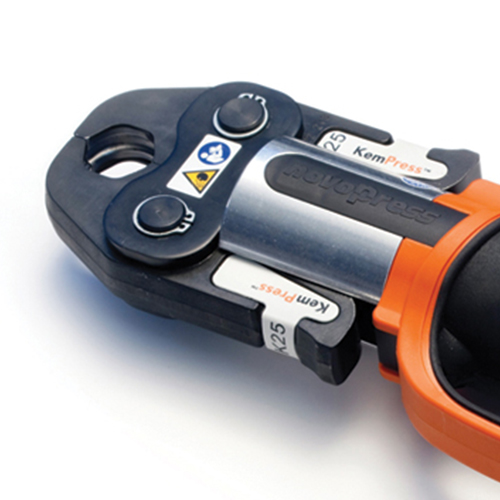

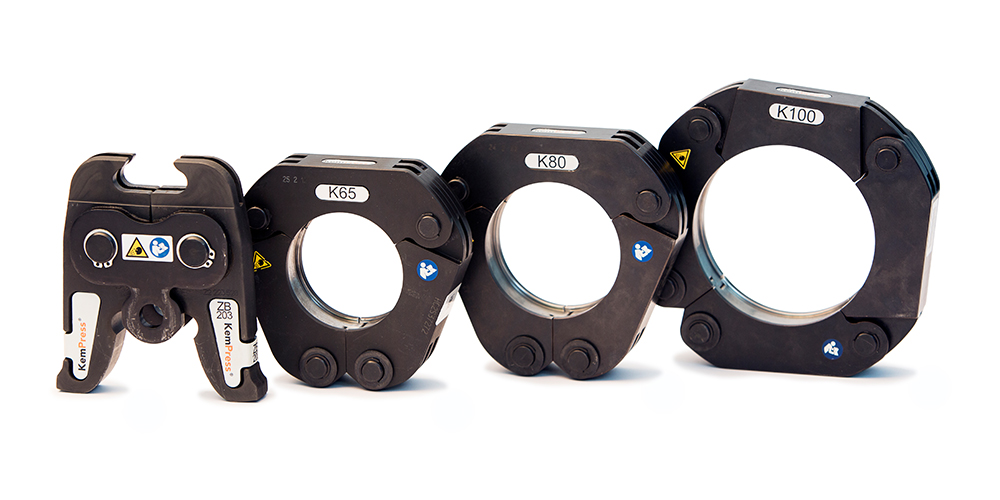

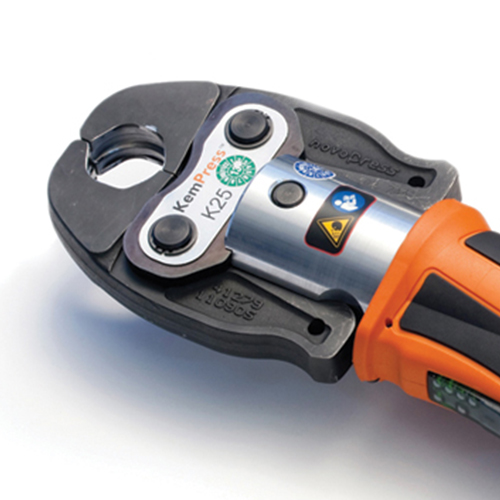

KemPress KPS DN15 Jaw | KemPress-KPL DN15 Jaw | KemPress DN65 100 Collar Adaptor Jaw Kit (AUS)
| Item Code | Description | Includes | ||||
|---|---|---|---|---|---|---|
| X97516 | KemPress KPS2 SS Tool Kit 15mm-28mm | KPS2 Battery Powered Hydraulic Press Tool | ||||
| KPS 15mm M Profile Jaw | ||||||
| KPS 22mm M Profile Jaw | ||||||
| KPS 28mm M Profile Jaw | ||||||
| 2 x 12V 1.5Ah Lithium-ion Batteries | ||||||
| 1 x 12V Battery Charger | ||||||
| Carry Case | ||||||
| X97504 | KemPress KPL2 SS Tool Kit 15mm-35mm (Suitable for use up to 54mm) | KPL3 Battery Powered Hydraulic Press Tool | ||||
| KPL 15mm M Profile Jaw | ||||||
| KPL 22mm M Profile Jaw | ||||||
| KPL 28mm M Profile Jaw | ||||||
| KPL 35mm M Profile Jaw | ||||||
| 2 x 18V 1.5Ah Lithium-ion Batteries | ||||||
| 1 x 18V Battery Charger | ||||||
| Carry Case | ||||||
| X97514 | KemPress KPXL2 SS Tool Kit 15mm-35mm (Suitable for use up to 108mm) | KPL3 Battery Powered Hydraulic Press Tool | ||||
| KPL/KPXL 15mm M Profile Jaw | ||||||
| KPL/KPXL 22mm M Profile Jaw | ||||||
| KPL/KPXL 28mm M Profile Jaw | ||||||
| KPL/KPXL 35mm M Profile Jaw | ||||||
| 2 x 18V 3.0Ah Lithium-ion Batteries | ||||||
| 1 x 18V Battery Charger | ||||||
| Carry Case | ||||||
| X97520 | KemPress 42 & 54mm Collar & AB203 Adaptor Jaw Kit (suitable for use on KPL2 and KPXL2 tool models) | 42mm M Profile Collar | ||||
| 54mm M Profile Collar | ||||||
| ZB203 Adaptor Jaw | ||||||
| Carry Case | ||||||
| X97528 | KemPress 76.1 & 108mm Collar Kit (suitable for use KPXL2) | 76.10mm M Profile Collar | ||||
| 108mm M Profile Collar | ||||||
| Carry Case | ||||||
| X97523 | KemPress 76.1 & 108mm Adaptor Jaw Kit (suitable for use KPXL2) | ZB221 Adaptor Jaw (for 76.1mm and 108mm) | ||||
| ZB222 Adaptor Jaw (for 2nd press of 108mm) | ||||||
| Carry Case | ||||||
| X97600 | KemPress KPS M Profile 15mm Jaw | 15mm Jaw for KPS2 | ||||
| X97601 | KemPress KPS M Profile 22mm Jaw | 22mm Jaw for KPS2 | ||||
| X97602 | KemPress KPS M Profile 28mm Jaw | 28mm Jaw for KPS2 | ||||
| X97650 | KemPress KPS M Profile 15mm Jaw | KPL/KPXL 15mm M Profile Jaw | ||||
| X97651 | KemPress KPS M Profile 22mm Jaw | KPL/KPXL 22mm M Profile Jaw | ||||
| X97652 | KemPress KPS M Profile 28mm Jaw | KPL/KPXL 28mm M Profile Jaw | ||||
| X97653 | KemPress KPS M Profile 35mm Jaw | KPL/KPXL 35mm M Profile Jaw | ||||
| X97524 | KemPress ZB203 Adaptor Jaw (for use with 42mm and 54mm collars on KPL2/KPXL2) | ZB203 Adaptor Jaw |
3 Year Tool Warranty
The KemPress® tool, jaws, adaptor jaws and collars are guaranteed to work for a minimum of 3 years from date of purchase. The warranty covers the repair of any damage or malfunction to the tool that is the cause of defective materials or parts. It will not cover damage caused by improper use, inadequate maintenance or mishandling of the tool (for example, major impact caused by dropping the tool or water damage).
1 Year Battery Warranty
All KemPress 12V and 18V Lithium Ion batteries are covered by a 12 month warranty from date of purchase.
SUPPORT: DOWNLOAD FILES
Australian, New Zealand, European & American standards brochures
